Opera 2015 - Episode 002

Event n. 4004875411
Md. 4.3
Date/time: 23/01/2015 06:51:20
Area: Appennino Pistoiese
Coordinates  (lat, lon) 44.13, 11.12
Deep: 10 km



Map taken from Google Map

Seismic event details are reported by INGV:  http://cnt.rm.ingv.it/event/4875411


Radioseismic index (RI) and distances:



Source files:
Wave file of earthquake, from 04:00 to 08:00, recorded with ICS101 induction coil:
23JAN15-0400_sogliano.wav

SOGLIANO daily multistrip Geophone detection:

Event 4004875411 marked with white arrow. 1st Schumann resonance, wind, local storm and SRS (spectral Resonance Structures), but no magnetic anomaly detected coinciding with the event. The strange signal below 2 Hz is of local origin: we do not know what causes it but it seem to be associated with the presence of the wind.

SOGLIANO Magnetic field below 35 Hz, 8 hours detected with ICS101 induction coil:

Event 4004875411 marked with white arrow. Schumann resonances marked on right side, wind effects but no magnetic anomalies first or during the earthquake

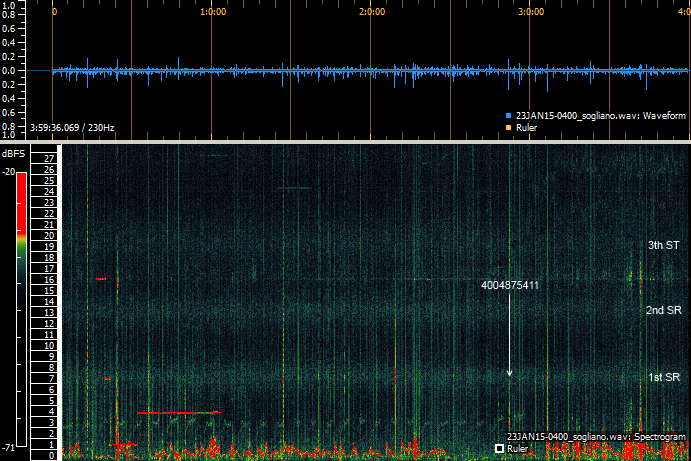

SOGLIANO Magnetic field below 35 Hz, 4 hours wave file post processed, signal detected with ICS101 induction coil:

Event 4004875411 marked with white arrow. Schumann resonances marked on right side, wind effects but no magnetic anomalies first or during the earthquake. Processed with Sonic Visualizer (http://www.sonicvisualiser.org/).

SOGLIANO Magnetic field below 35 Hz, 4 hours wave file post processed, signal detected with ICS101 induction coil:
Event 4004875411 marked with yellow dotted line. Schumann resonances marked on right side, wind effects but no magnetic anomalies first or during the earthquake. Processed with an old version of Cool Edit (http://www.oldapps.com/CoolEdit.php).
