Opera 2015 - Episode 011

Event-ID: 4005166231
Magnitude (Mwpd): 7.6
Time 29/03/2015 at 23:48:30 (UTC)
Coordinates:  4.732S, 152.515E
Deep:  20 km
Seismic district: New Britain, Papua New Guinea, region



Map taken from Google Map

Seismic event details are reported by INGV:  http://cnt.rm.ingv.it/event/5166231

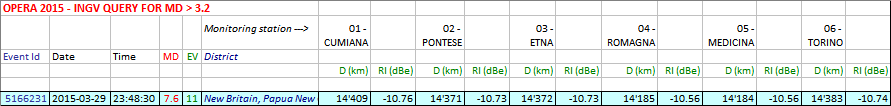

Radioseismic index (RI) and distances:

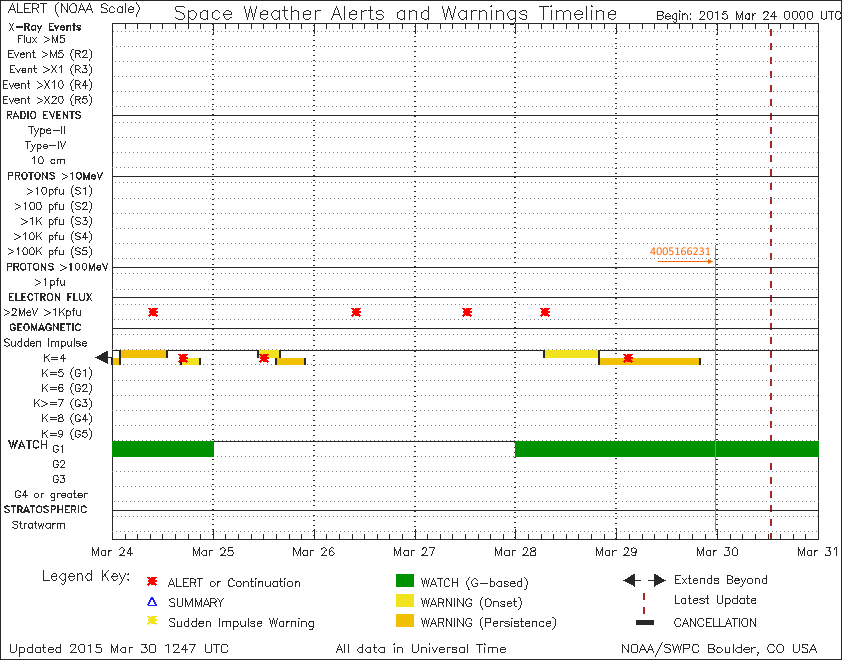

Geomagnetic activity as reported by NOAA (http://www.swpc.noaa.gov/products/notifications-timeline)

Geomagnetic activity on course, sudden impulses due to solar activity. Event
4005166231 marked with orange line.


Geomagnetic activity detected by Kiruna Geophysical Institute (Sweden )  http://www.irf.se/maggraphs/puls.php

Composite picture: 2 days before earthquake on top, 1 day before on middle, earthquake
day on bottom, event 4005166231 marked with orange line. Weak PC1 pulsation at 14:00 two days before earthquake. Weak activity, connected to geomagnetic turbulence in progress.

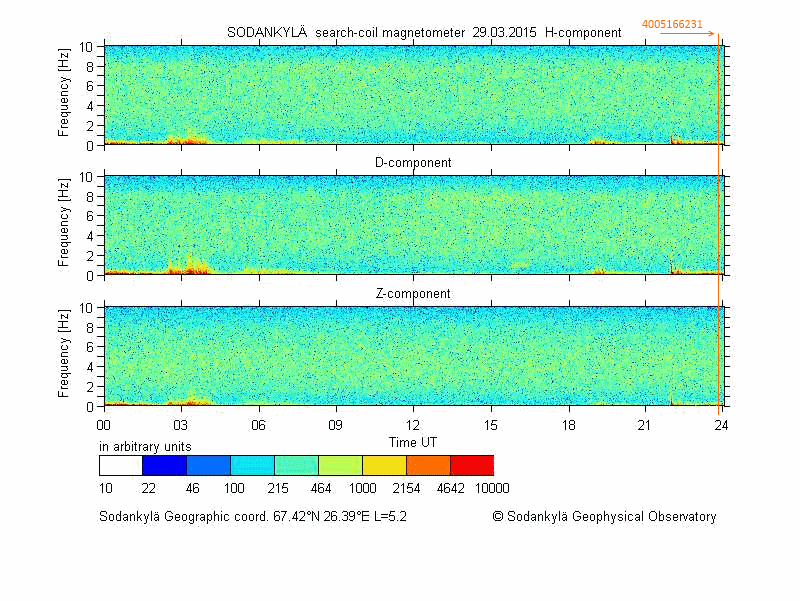

Geomagnetic activity detected by  Sodankyla Geophysical Observatory (Finland) http://www.sgo.fi/Data/Pulsation/latestPulsation.php

As above for Kiruna: any unusual activity, weak ones are connected to geomagnetic turbulence in progress. Event 4005166231 marked with orange line.


Monitoring St. 01 - IK1QFK  CUMIANA (TO), NW Italy

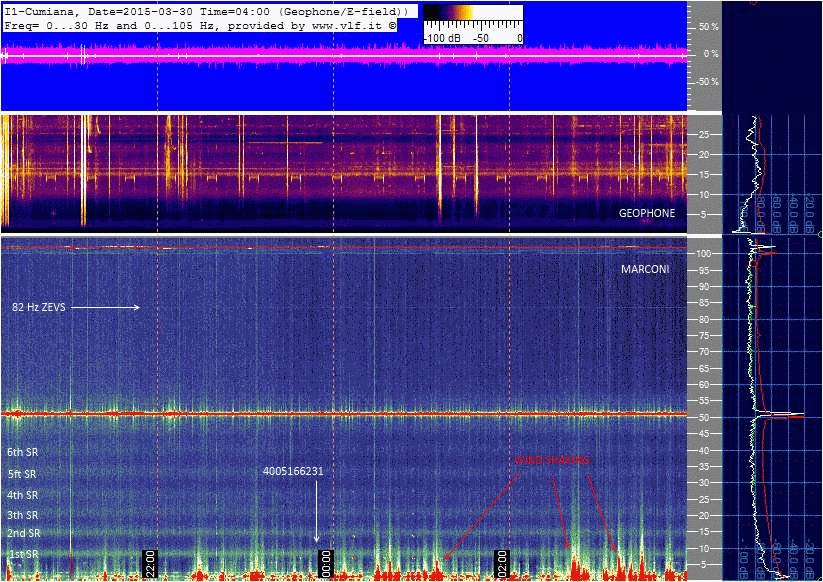

Geophone signal on top, electric field on bottom. Schumann resonances marked on left part of spectrogram. Wind shaking effect marked with red arrows. 82 Hz ZEVS signal (Russian submarines network), and event
4005166231 marked with white arrow. No signal connected with geoseismic event.


Monitoring St. 01 - IK1QFK  CUMIANA (TO), NW Italy

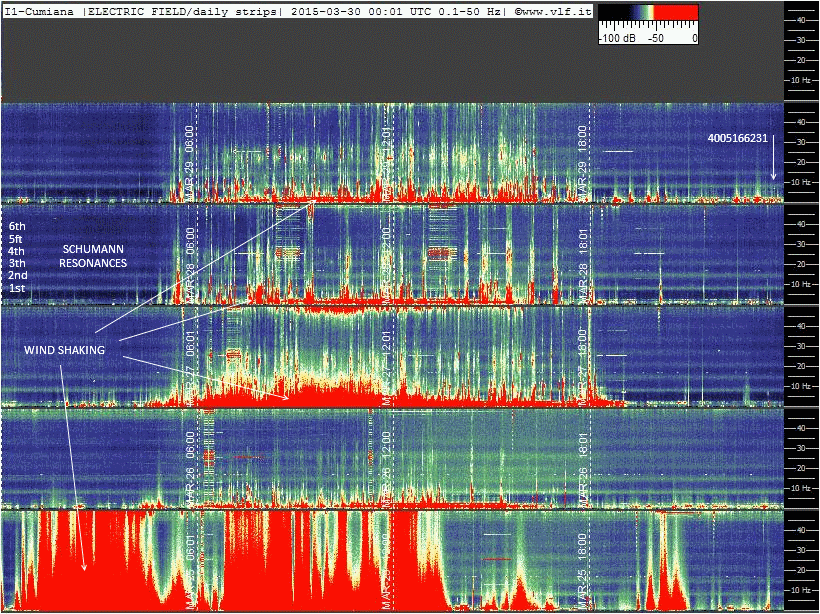

Electric field in daily multistrip representation. Schumann resonances marked on left part of spectrogram, and strong wind shaking effect, especially during daylight.
Event 4005166231 marked with white arrow. No evidence of signal connected with geoseismic event.



Monitoring St. 01 - IK1QFK  CUMIANA (TO), NW Italy

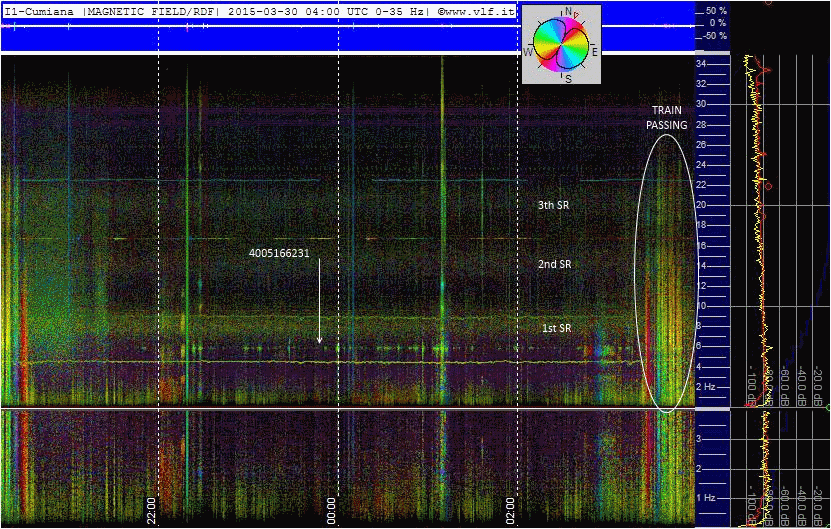

Couple of orthogonal induction coils orthogonally placed, RDF representation. Seismic event 4005166231 marked with white arrow: no signals connected with it. Schumann resonances and train passing 5 km away marked on right part of spectrogram.


Monitoring St. 01 - IK1QFK  CUMIANA (TO), NW Italy

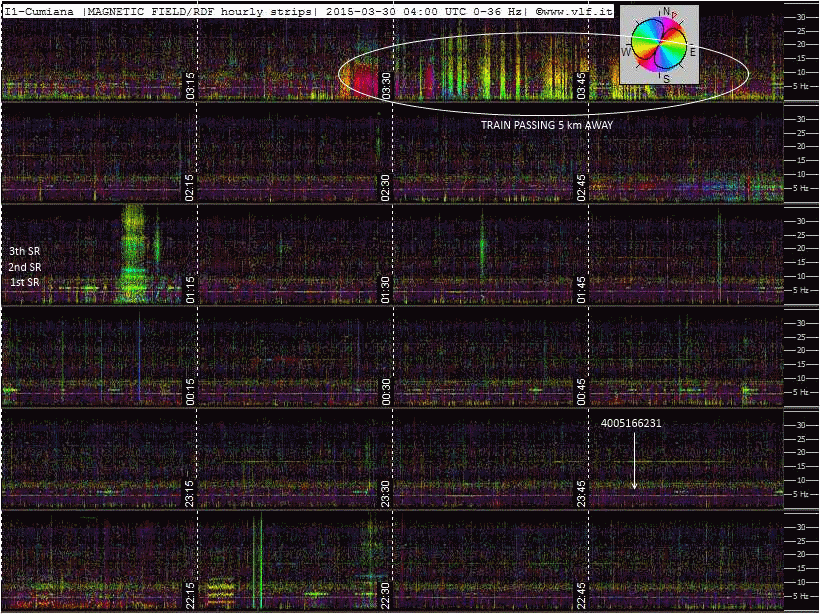

Couple of orthogonal induction coils orthogonally placed, RDF representation in hourly strips. Seismic event 4005166231 marked with white arrow: no signals connected with it. Schumann resonances marked on left part of the picture and train passing 5 km away marked on top.


Monitoring St. 01 - IK1QFK  CUMIANA (TO), NW Italy

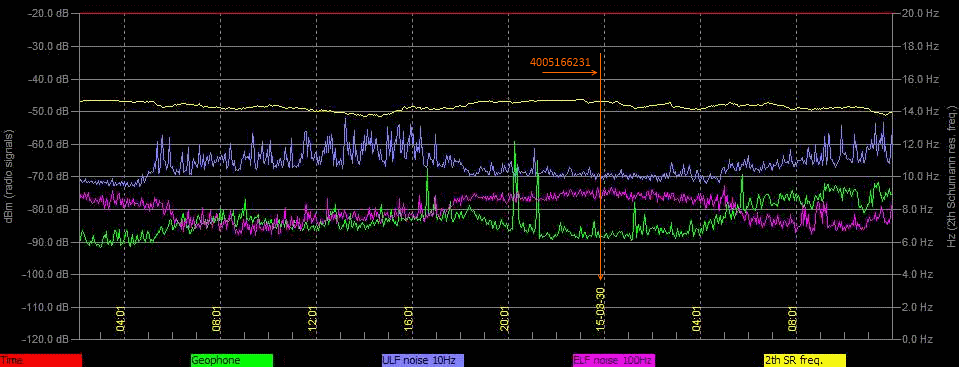

Electric filed signals plot, divided for frequency band.
Green trace is geophone signals level and yellow plot id the frequency of second shumann resonances. Seismic event 4005166231 marked with orange arrow: no anomalies connected with it.


St. 05 - NORTHERN CROSS RADIOTELESCOPE From Medicina (IT - Bologna), N Italy

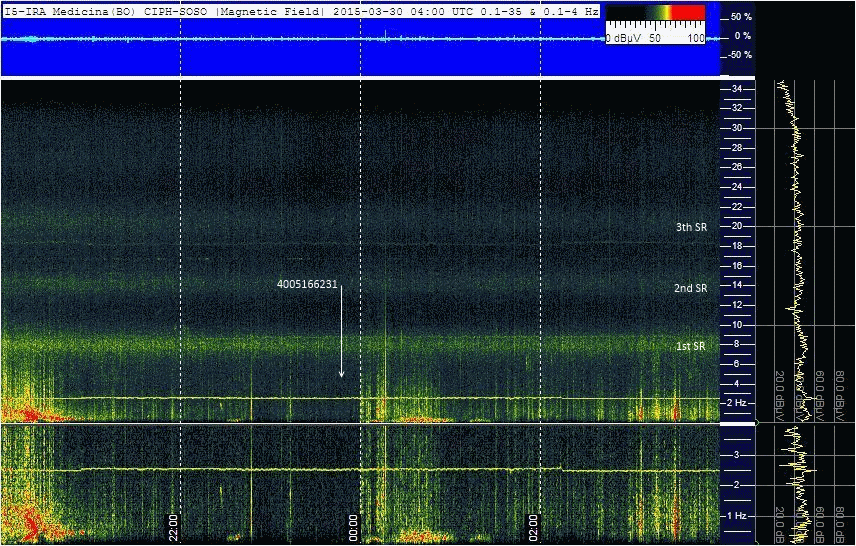

Magnetic field detected with induction coil. Schumann resonances marked on right part of spectrogram. Seismic event
time n. 4005166231 marked with white arrow on the centre of picture. No signals connected with event.


St. 05 - NORTHERN CROSS RADIOTELESCOPE From Medicina (IT - Bologna), N Italy

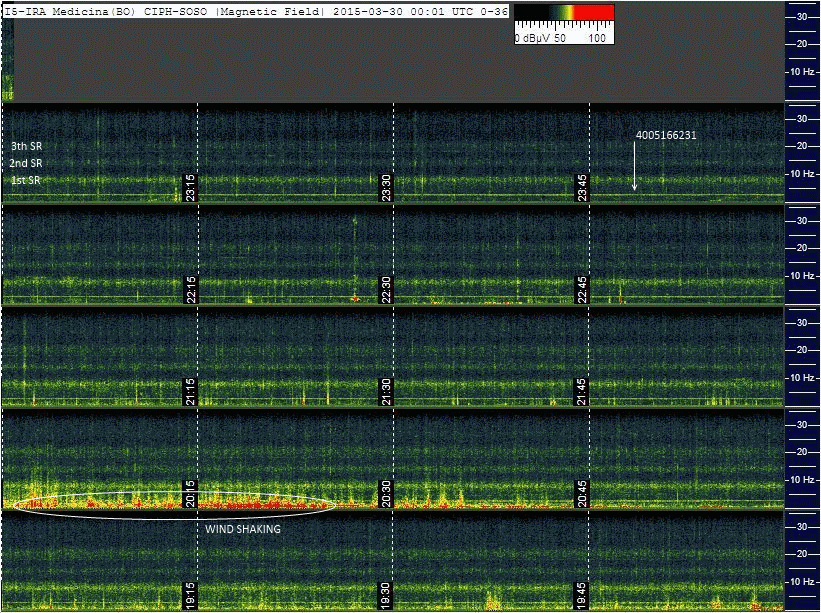

Magnetic field detected with induction coil, multistrip hourly spectrogram. Schumann resonances marked on left part of spectrogram. Seismic event time n. 4005166231 marked with white arrow on the top. No signals connected with event, wind shaking some hours before.


St. 05 - NORTHERN CROSS RADIOTELESCOPE From Medicina (IT - Bologna), N Italy

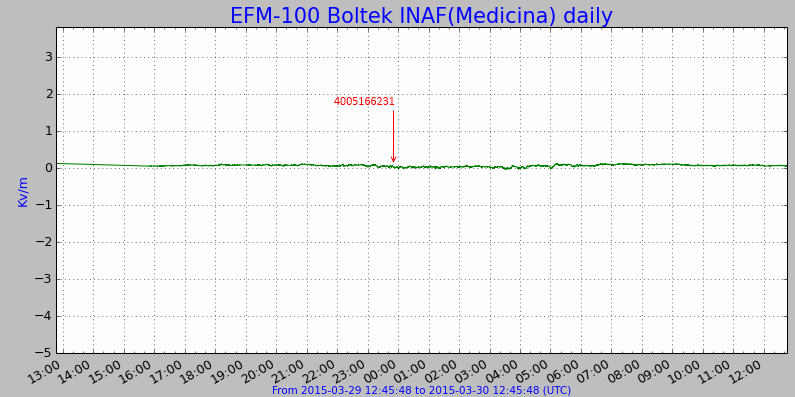

Static electric field detected with Boltek receiver.
Seismic event n. 4005166231 marked with red arrow. No anomalies before, during or after the seismic event.


St. 03 - ETNA RADIO OBSERVATORY From NICOLOSI (CT), Etna Park, Sicily, S Italy

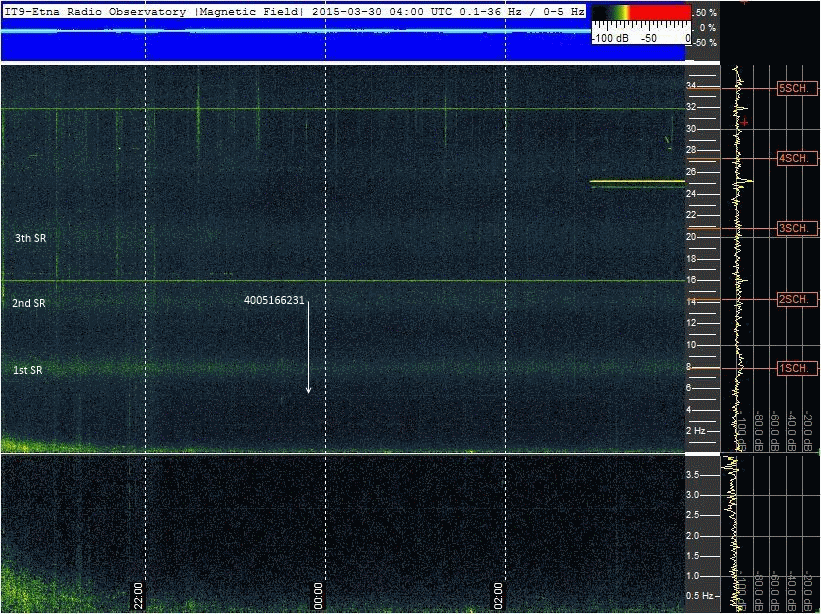

Magnetic field detected with induction coil. Schumann resonances marked on left part of spectrogram. Seismic event time n. 4005166231 marked with white arrow on the centre of picture. No signals connected with event.


St. 03 - ETNA RADIO OBSERVATORY From NICOLOSI (CT), Etna Park, Sicily, S Italy

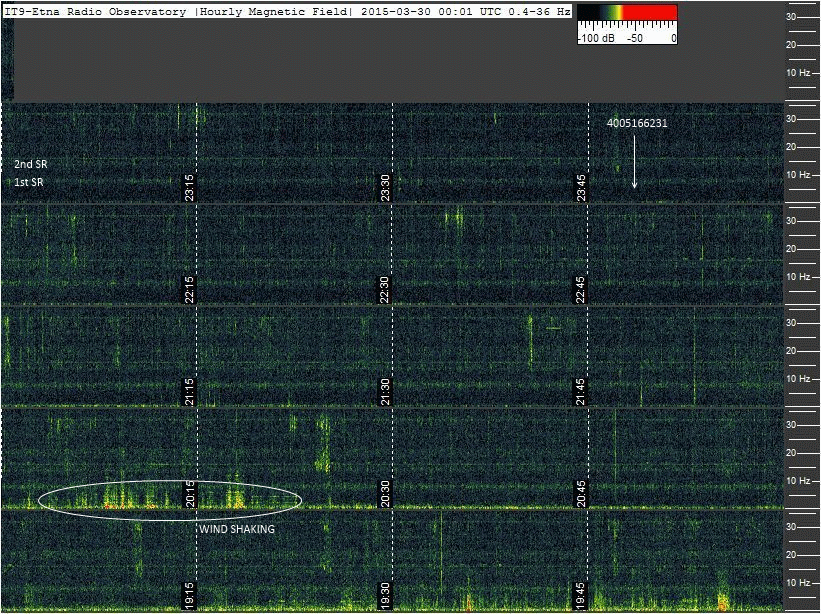

Magnetic field detected with induction coil, multistrip hourly spectrogram. Schumann resonances marked on left part of spectrogram. Seismic event time n. 4005166231 marked with white arrow on the top. No signals connected with event, wind shaking some hours before.
