Opera 2015 - Episode 029

Event number: 6059541
Magitude ML 3.1
Area: Torino province, NW Italy
Date/time:  10-09-2015 07:32:08 (UTC)
Coordinates: (lat, lon) 44.81, 7.15
Deep: 11 km.

Map taken from Google Map:

Seismic event details are reported by INGV:  http://cnt.rm.ingv.it/event/6059541


Radioseismic index (RI) and distances :



Monitoring St. 01 - IK1QFK  CUMIANA (TO), NW Italy

Geophone, hourly multistrip,  6059541 event marked with vertical  white arrow. Seismic wave follows immediately, due to the short distance from the event


Source files:

Monitoring St. 01 - IK1QFK  CUMIANA (TO), NW Italy

Marconi antenna, electric filed,  6059541 event marked with white arrow. Alpha radionavigation system signals on top, statics. No RF signals correlated with earthquake event.


Monitoring St. 01 - IK1QFK  CUMIANA (TO), NW Italy

Geophone trace on top and electric filed on bottom,  6059541 event marked with white arrow. Schumann Resonances on left part. ZEVS russian submarines signal carrier, some microfonic signals some minutes before event, and some 50 Hz mirrored carriers.  No RF signals correlated with earthquake event.

Monitoring St. 01 - IK1QFK  CUMIANA (TO), NW Italy

Marconi antenna - electric field, daily strips,  6059541 event marked with white arrow. Schumann Resonances on left part and daiylight noise evedenced in white ovals.. No RF signals correlated with earthquake event.

Monitoring St. 01 - IK1QFK  CUMIANA (TO), NW Italy

Marconi antenna and geophone, amplitude plot,  6059541 event marked with orange arrow.  No RF anomalies correlated with earthquake event.

Monitoring St. 01 - IK1QFK  CUMIANA (TO), NW Italy

Two ICS101 orthogonal induction coil, RDF complex FFT process,  6059541 event marked with white arrow. Schumann Resonances on left part, 50 Hz mirrored signals, some train passing 5 km away. No RF signals correlated with earthquake event.

Monitoring St. 01 - IK1QFK  CUMIANA (TO), NW Italy

Two ICS101 orthogonal induction coil, hourly strips,  6059541 event marked with white arrow. Schumann Resonances on background, , train passing 5 km away. No RF signals correlated with earthquake event.

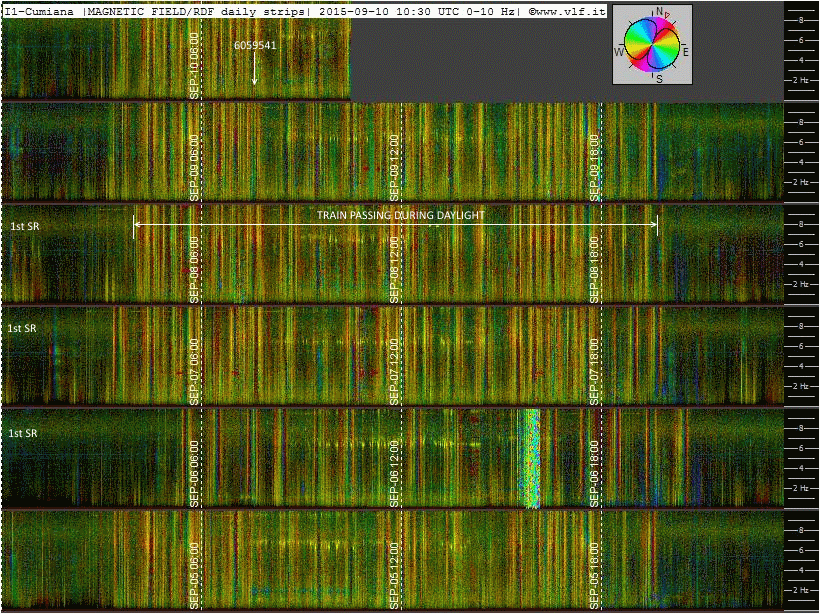

Monitoring St. 01 - IK1QFK  CUMIANA (TO), NW Italy

Two ICS101 orthogonal induction coil, daily strips,  6059541 event marked with white arrow. First Schumann Resonances marked on left, train passing 5 km away during the daylight. No RF signals correlated with earthquake event.


Monitoring St. 02 - CSP VLF MONITORING STATION From Pontese dew (TO), NW Italy

ADA electric field antenna on top, aerial loop on bottom,  6059541 event marked with white arrow. Statics, tweaks on magnetic wave, Alpha radionavigation system signals, solar panel inverter noise. No RF signals correlated with earthquake event.


Monitoring St. 02 - CSP VLF MONITORING STATION From Pontese dew (TO), NW Italy

ADA electric field antenna on top, aerial loop on bottom,  6059541 event marked with white arrow. Noise caused by inverter used by solar system panels. No RF signals correlated with earthquake event.


Monitoring St. 01 - IK1QFK  CUMIANA (TO), NW Italy

Geophone and marconi antenna,  6059541 event marked with red arrow. Schumann Resonances on left part. Source file 05_10SEP15-0400_E.wav  analyzed with Sonic Visualizer. No RF signals correlated with earthquake event.


Monitoring St. 01 - IK1QFK  CUMIANA (TO), NW Italy

As before, 1 hour detail back the event 6059541, marked with red arrow. Marconi antenna shaked by wind before the event and microphonic effect during the seismic wave passing. No evidence of RF signals correlated with earthquake event.
