Opera 2015 - Episode 033

Event number 6096411
Magnitudo ML 3.9
Date/Time: 20-09-2015 ore 22:27:58 (UTC)
Zone: Costa Siracusana (Siracusa coast)
Coordinates (lat, lon) 37.15, 15.62
Deep: 23 km.

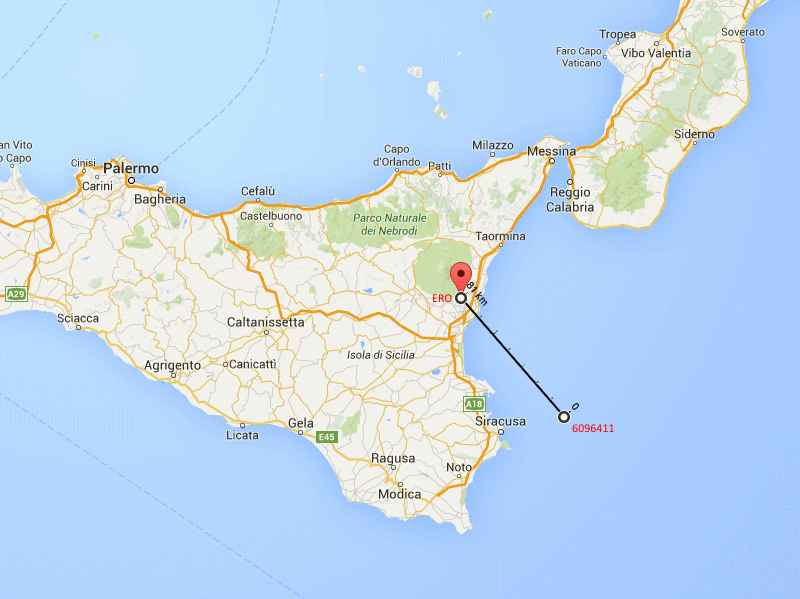

Map taken from Google Map

Seismic event details are reported by INGV: http://cnt.rm.ingv.it/event/6096411


Radioseismic index (RI) and distances :



Source files:

• Wave file recording by Monitoring St. 03 - ETNA RADIO OBSERVATORY From NICOLOSI (CT), Etna Park, Sicily, S Italy , Left channel geophone, right channel Induction coil, from 20SEP15-2000  to  00:00: 02b_20SEP15-2000_coil.wav
• Wave file recording by Monitoring St. 03 - ETNA RADIO OBSERVATORY From NICOLOSI (CT), Etna Park, Sicily, S Italy , Left channel geophone, right channel Induction coil, from 20SEP15-0000  to  21sept2015-0400 (28 hours), downsampled to 70 s/sec: 02c_20sept2015-0000_21sept2015-0400_35.wav


Lightning activity map, courtesy of www.blitzortung.org

High storm activity all around Sicily, where the Monitoring St. 03 is placed.


Monitoring St. 03 - ETNA RADIO OBSERVATORY From NICOLOSI (CT), Etna Park, Sicily, S Italy

Geophone, hourly multistrip,  6096411 event marked with white arrow, followed by seismic wave.


Monitoring St. 03 - ETNA RADIO OBSERVATORY From NICOLOSI (CT), Etna Park, Sicily, S Italy

Induction coil, situation 6 hours before the event: a strong storm, preceded by wind fills all the spectrum with a signal similar to white noise.


Monitoring St. 03 - ETNA RADIO OBSERVATORY From NICOLOSI (CT), Etna Park, Sicily, S Italy

Induction coil,  6096411 event marked with white arrow. Schumann Resonances marked on right part. Local storm ending on left part and strong low frequency noise before the event, but not correlated with earthquake event.


Monitoring St. 03 - ETNA RADIO OBSERVATORY From NICOLOSI (CT), Etna Park, Sicily, S Italy

Induction coil,  6096411 event marked with white arrow. Schumann Resonances overpassed by local storm activity. Low frequency noise precedes the event, but not correlated with earthquake event.

Monitoring St. 03 - ETNA RADIO OBSERVATORY From NICOLOSI (CT), Etna Park, Sicily, S Italy

Induction coil, daily strips,  6096411 event marked with white arrow. First Schumann Resonance marked on left part. Strong storm activity starting from 11:30 before the event and low frequency noise some hours before, like every day in the evening. Also a PC1 geomagnetic pulsation 4 days before the event. No RF signals correlated with earthquake event.


Monitoring St. 03 - ETNA RADIO OBSERVATORY From NICOLOSI (CT), Etna Park, Sicily, S Italy

Geophone on top and induction coil on the bottom,  6096411 event marked with white arrows, 28 hours view. Schumann Resonances on left part. No RF signals correlated with earthquake event.


Monitoring St. 03 - ETNA RADIO OBSERVATORY From NICOLOSI (CT), Etna Park, Sicily, S Italy

Geophone on top and induction coil on the bottom,  6096411 event marked with red vertical line. Schumann Resonances on left part. 50 minutes detail with seismic wave detected by geophone, and microphonic effect caused on coil by seismic wave. No RF signals correlated with earthquake event.
